Alpha 360° Red Emergency Watermelon Light – 3-Mode 360° Glass Beacon (12V/24V)

Alpha 360° Red Emergency Watermelon Light – 3-Mode 360° Glass Beacon (12V/24V)

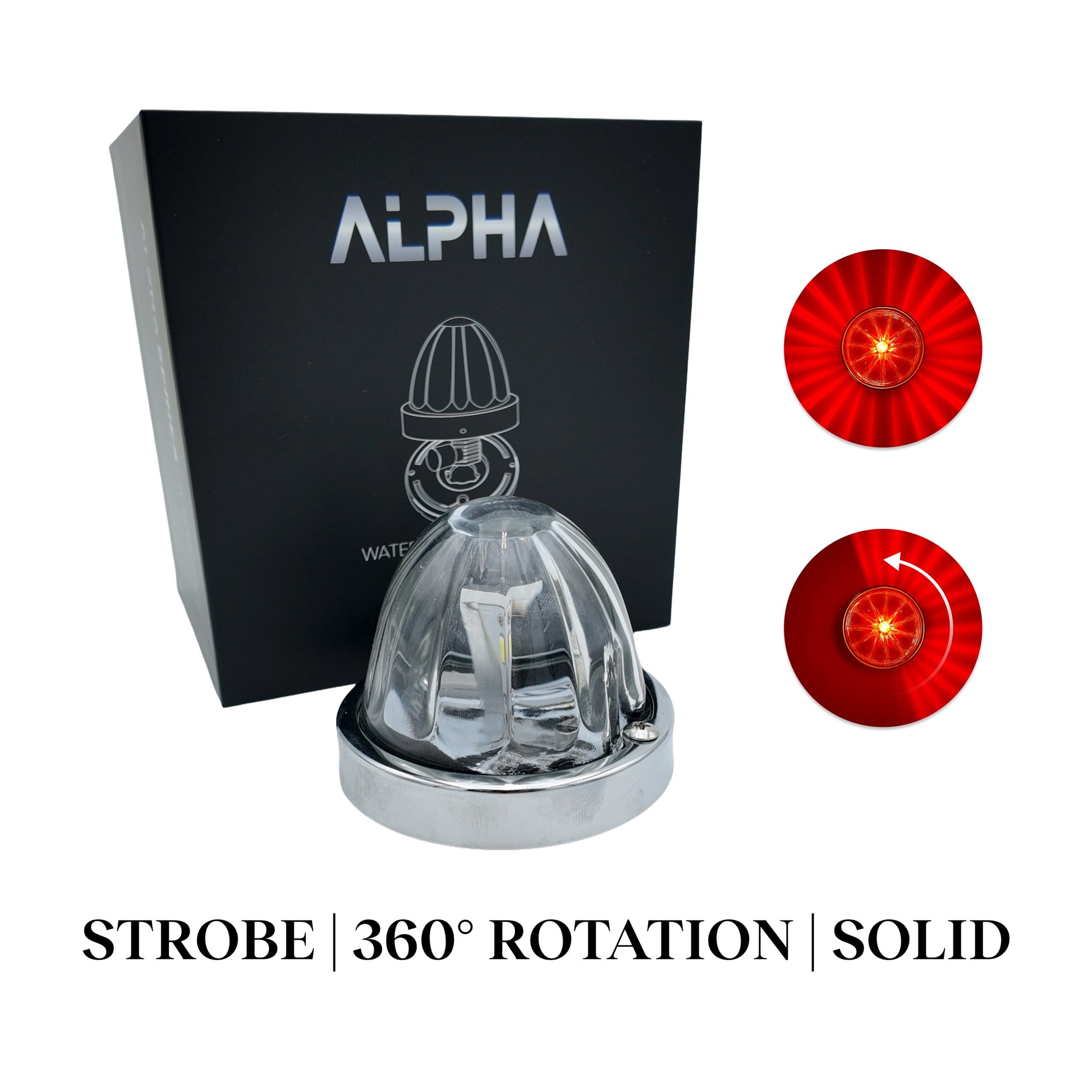

The Alpha 360™ Multi-Mode Glass Lens Beacon is a display-grade 360° LED light designed for show, demo, and off-road applications. Combining a vintage-style glass “watermelon” dome with modern LED control, it provides three selectable operating modes for maximum visual impact.

Its 12-24V compatibility makes it suitable for a wide range of vehicles — from show trucks and fleet display units to classic emergency vehicle restorations. With sealed electronics and a heavy-duty base, the Alpha 360 is built to withstand transport, handling, and outdoor events.

For off-road and display use only. Not DOT approved. Not for use on public roads where prohibited.

Key Features

• Three Modes: Steady on, rotating simulation, and strobe flash.
• Mode Priority Logic: Strobe overrides rotate; rotate overrides steady when multiple leads are powered.
• Glass Lens: Clear “watermelon” style lens with faceted optics for crisp starburst projection.
• Multi-Voltage: Operates from 12V or 24V DC without modification.
• Sealed & Durable: Weather-resistant IP67 construction, die-cast base.
• Low Power Draw: Approx. 12W total load.

Applications (Off-Road/Display)

• Emergency service fleet demos
• Tow truck and utility display vehicles
• Show trucks and custom builds
• Parade and event rigs
• Classic police/fire/EMS vehicle restoration (non-operational/display only)

Specifications

• Input Voltage: 12-24V DC
• Power: ~12W
• Modes: Steady, rotating, strobe
• Lens: Clear glass “watermelon” style

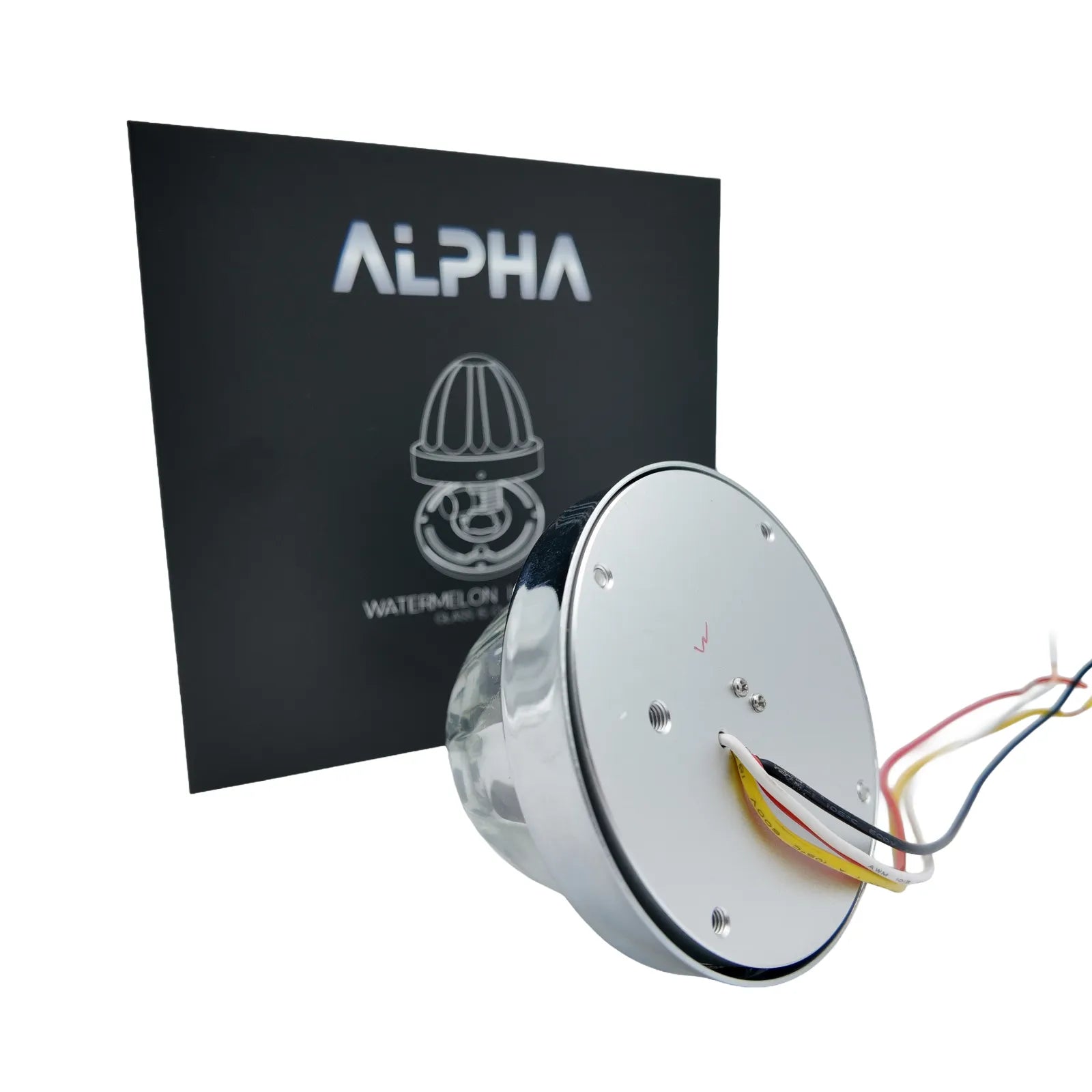

• Wiring: 4-wire harness (1 ground, 3 mode leads)
• Mounting: 2-bolt flange M4x 8mm
• Ingress Protection: IP67
• Use Case: For off-road, display, and show purposes only

Installation

Permanent 3-bolt mount or optional magnetic base. Wire each mode to its own control switch or circuit. Internal mode priority logic prevents conflicting operation when multiple circuits are powered.
